(all pictures and videos are taken from real factory scenes)
Orange bark-grain metal exterior wall panels are a type of metal exterior wall insulation panel with a unique color and texture. Combining the high strength and durability of metal panels with the thermal insulation properties of insulation materials, this exterior wall panel offers high thermal insulation, excellent fire resistance, durability, and weather resistance. It is lightweight and high-strength, has a decorative effect, is easy to install, and is environmentally friendly.
Lightweight insulation panels are a new energy-saving wall material. They resemble hollow-core floor slabs, but feature tongue and groove joints on either side. Installation requires simply standing the panels upright, applying a small amount of caulking mortar to the tongue and groove joints, and then assembling them. They are made from harmless phosphogypsum, lightweight steel slag, fly ash, and other industrial waste residues, and are cured using variable-frequency steam pressurization. Lightweight insulation panels offer advantages such as light weight, high strength, multiple environmental benefits, thermal insulation, sound insulation, breathable and humidity-regulating properties, fire resistance, rapid construction, and reduced wall construction costs.
Orange Color Bark Pattern Metal carved board Exterior Wall Insulation Decorative Board size specifications
| Product Name | Orange Color Bark Pattern Metal Carved Board Exterior Wall Insulation Decorative Board |
| Material | Outer layer: Galvanized steel (yellow bark-grain embossed finish) |
| Middle layer: Rigid high-density polyurethane foam (insulation layer) |
| Baseboard options: Aluminum alloy or stainless steel (for high-end projects) |
| Width | 383mm (mainstream) |
| Thickness | 16mm (standard) |
| Length | 2000-8000mm (customizable) |
Physical Properties
| Thermal Conductivity: 0.024-0.056 W/(m·k) |
| Compressive Strength: 320.4 kPa |
| Water Absorption: 0.8% |
| Excellent thermal insulation performance compared to traditional materials, reducing indoor temperatures by 3-5°C in summer |
Fire Protection and Safety
| Fire Rating: B1 |
| Smoke Toxicity: ZA3 |
| Formaldehyde Emission: Not Detectable |
| Wind resistance must comply with GB/T21086-2007. For wind pressure levels of level 9, it is recommended to select boards with a thickness of 1.0mm or greater. |
The core advantages of Orange Color Bark Pattern Metal Carved Board Exterior Wall Insulation Decorative Board are:
1. Decorative Performance: The surface texture faithfully replicates the natural texture of tree bark, and the yellow hue complements pastoral, rural, or ecological architectural styles. It can also be combined with other textures, such as brick and stone, to meet diverse aesthetic needs.
2. Thermal Insulation: The polyurethane foam middle layer creates a closed-cell structure with low thermal conductivity (approximately 0.056 W/(m·K) at room temperature), effectively blocking heat transfer and reducing building energy consumption.
3. Durability and Protection: The metal panels are rust-resistant and impact-resistant, and the seven-layer resin coating ensures long-lasting colorfastness. The overall structure is waterproof and moisture-resistant, resisting erosion from rain, snow, and freeze-thaw cycles.
4. Convenient Installation: Standard specifications include 3800 × 385 × 16 mm. Using a recessed and convex snap-in installation system, professional workers can complete large-scale installations in a single day, and subsequent maintenance requires only regular cleaning.
Product structure and core performance parameters of Orange Color Bark Pattern Metal Carved Board Exterior Wall Insulation Decorative Boards
1. Waterproof and Moisture-Proof
The structural design and material selection of metal carved panels ensure excellent waterproof and moisture-proof properties, preventing structural damage caused by rain, snow, freeze-thaw, and dry-wet cycles. This eliminates the worry of water seepage and effectively prevents mold growth on interior walls.
2. Flame Retardant
The core material of the metal carved panels has been specially treated to provide excellent fire retardancy and safety.
3. Sound Insulation and Noise Reduction
The core material of the metal carved panels is a high-density polyurethane foam insulation layer. The interior features an independent, closed-cell structure, providing excellent sound insulation and making them suitable for buildings near noisy areas.
4. Environmentally Friendly
Metal carved panels have a stable chemical and physical structure, resist decomposition and mold, and are radiation-free and pollution-free, making them environmentally friendly. The panels can also be flexibly disassembled and reinstalled on other buildings. Leftover construction scraps can also be recycled, reducing construction waste. This high-quality, high-performance, environmentally friendly product is also available. 5. Earthquake and Crack Resistance
Metal carved panels are lightweight, strong, and impact-resistant, not only reducing the building's own weight but also significantly mitigating the impact of earthquakes.
6. Thermal Insulation
Metal carved panels offer excellent thermal insulation properties. Compared to traditional exterior wall insulation and decorative building materials, they offer superior cold-resistance and heat insulation, significantly reducing heating and cooling energy consumption and saving energy costs.
7. Highly Decorative
Metal carved panels feature embossed metal patterns in a variety of colors, including brick, stone, ripple, tile, and mosaic patterns. These patterns are available in a variety of colors, allowing for a wide range of options to match your design to your preferences, the building's characteristics, and the surrounding environment.
8. Lightweight and Space-Saving
Metal carved panels are lightweight, weighing only 3.7 kg per square meter, making them easy to transport and install. They are also unaffected by seasonal climates and geographical conditions, accelerating project completion and reducing construction costs.
Orange Color Bark Pattern Metal Carved Board Exterior Wall Insulation Decorative Board application scenarios and application cases
1. Residential buildings: These include apartments and villas. Metal carved panels can be used for exterior wall insulation and decoration, enhancing the building's overall aesthetics and energy efficiency.
2. Commercial buildings: These include hotels and office buildings. They not only provide excellent thermal insulation but also enhance the building's visual appeal.
3. Industrial buildings: These include factories. Metal carved panels can be used as an exterior wall insulation and decoration material, improving the working environment while reducing energy consumption.
4. Public buildings: These panels are suitable for exterior wall decoration of public facilities such as schools and hospitals, creating a comfortable and energy-efficient environment.
5. Building renovation: For decorative and energy-saving renovations of existing buildings, metal carved panels can quickly improve the building's appearance and energy efficiency without requiring major structural changes.
6. Temporary buildings: These include security booths and container homes, providing temporary insulation and decoration solutions.

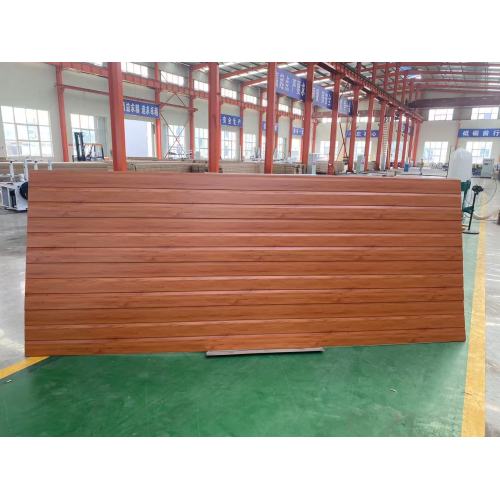

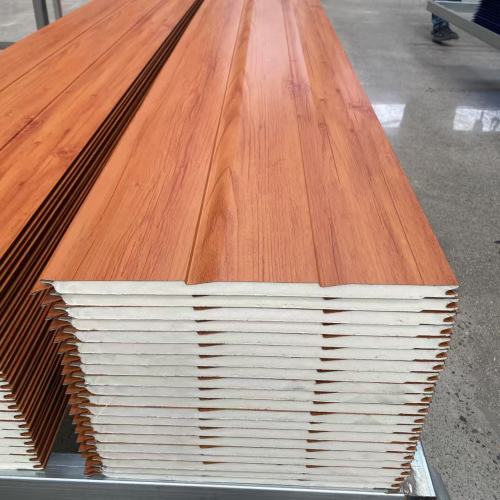

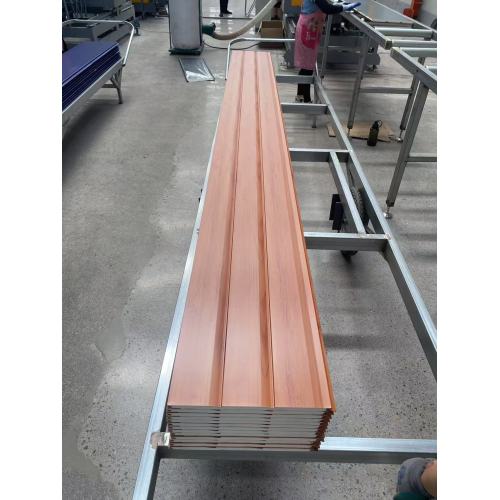

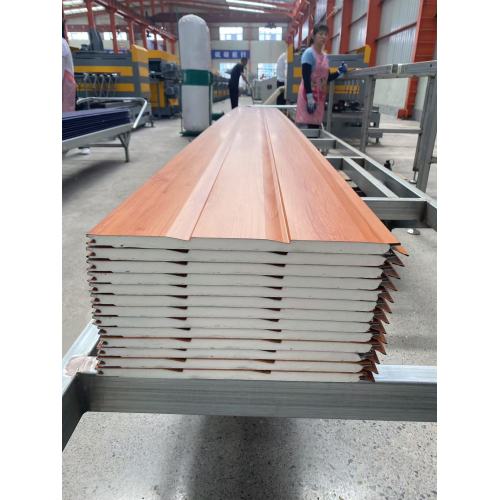

Factory display picture (all pictures are taken from real factory scenes)
Packaging and delivery display pictures (all pictures are taken from real factory scenes)
