Light-Colored Brick-Patterned High-Performance Decorative Metal Sandwich Panel

Light-Colored Brick-Patterned High-Performance Decorative Metal Sandwich Panel

Get Latest Price

Contact Now

After-sales Service: Online Technical Support

Engineering Solution Capability: Graphic Design

Application Scenario: Hotel, Sports Venues, Park, Home Office, Storage &Amp; Closet, Staircase, Basement, Exterior, Living Room, Courtyard, Leisure Facilities, Apartment, Villa, Farmhouse, Office Building, Supermarket, Other, Bedroom, Wine Cellar, Garage &Amp; Shed, Gym, Entry, Dining, Kitchen, School, Mall, Workshop, Warehouse, Hospital, Bathroom, Babies And Kids, Hall, Home Bar, Outdoor, Laundry

Design Style: Midcentury, Chinese, Japanese, Craftsman, Coastal, Industrial, Minimalist, Mediterranean, Postmodern, Modern, Traditional, Scandinavian, Contemporary, Farmhouse, European, Mid-Century Modern, French, Asian, Eclectic, Transitional, Southwestern, Tropical, Victorian

Place Of Origin: China

Panel Material: Metal

Description

2025-07-22_191421_250

00:08

2025-07-22_192621_129

00:11

7b38d314342370f334332aebc9b5a871

00:16

Product Description

(all pictures and videos are taken from real factory scenes)

Brick-patterned metal exterior wall panels are a new type of building material that combines decorative, thermal, and protective functions.

Brick pattern series metal exterior wall panel size specifications

Product Name	Metal Carved Panels (Standard Brick Pattern Series)
Material	Surface: Galvalume-coated steel
	Interlayer: Rigid polyurethane foam
	Base: Aluminum foil anti-corrosion layer
Dimensions	Effective width: 383mm
Thickness	16mm/20mm
Length	Customizable, ranging from 2-6 meters for easy transport
Net Weight	3.5kg/m2
Installation	Snap-in fastener assembly

The core advantages of these brick-patterned metal exterior wall panels are:

1. Highly decorative: Through an embossing process, a variety of textures, including fine brick, coarse brick, and standard brick, are achieved. A rich color palette allows them to mimic the visual effects of traditional ceramic tiles and stone. They can also be combined with wood and stone grains to enhance the layered appearance of building facades.

2. All-weather adaptability: Withstanding extreme cold and heat, UV aging, and acid, alkali, and salt corrosion, these panels are suitable for humid areas or complex environments. Their surface is easy to clean, reducing ongoing maintenance costs.

3. Fire and safety performance: Using a composite structure of metal steel and polyurethane, these panels achieve a fire rating of B2 (some products are B1). They are also lightweight, earthquake-resistant, and soundproof, enhancing building safety.

Product structure and core performance parameters of brick-patterned metal exterior wall panels

1. Materials and structure

Brick-patterned metal exterior wall panels usually adopt a composite structure of "metal panel + polyurethane insulation layer + backing layer":

(1) Panel: Mostly 0.2-0.5mm thick color steel plate or aluminum-zinc plate, the surface is processed by embossing machine to form a brick pattern, such as JKM-S600 embossing machine can customize brick pattern, plain pattern and other flower roller patterns.

(2) Insulation layer: The core is polyurethane foam material, the insulation effect is twice that of the same thickness polystyrene board, effectively reducing heating and cooling energy consumption.

2. Key performance indicators

(1) Brick-pattern series metal exterior wall panel insulation effect: The polyurethane insulation layer has a low thermal conductivity, excellent cold-resistant and heat-insulating properties, and significant energy-saving efficiency

(2) Brick-pattern series metal exterior wall panel fire rating: The mainstream products reach B2 level, and some upgraded models reach B1 level, meeting the building fire protection regulations

(3) Brick-pattern series metal exterior wall panel service life: When using fluorocarbon paint coating, the panel weather resistance can reach more than 15 years

(4) Brick-pattern series metal exterior wall panel installation characteristics: Dry construction, lock-and-hang connection, local damage can be replaced separately, high installation efficiency and not restricted by seasons

Brick-pattern series metal exterior wall panel product application scenarios and application cases

1. New buildings: brick-concrete structure, frame structure, steel structure, light steel villa, etc., such as light steel villa exterior wall, guardhouse, mobile board house.

2. Old renovation projects: Exterior wall decoration and energy-saving renovation of existing buildings, improving aesthetics while improving thermal insulation performance.

3. Special scenarios: steel structure guardhouses, container houses, mobile toilets, etc., temporary buildings that need to be waterproof and moisture-proof and quickly constructed

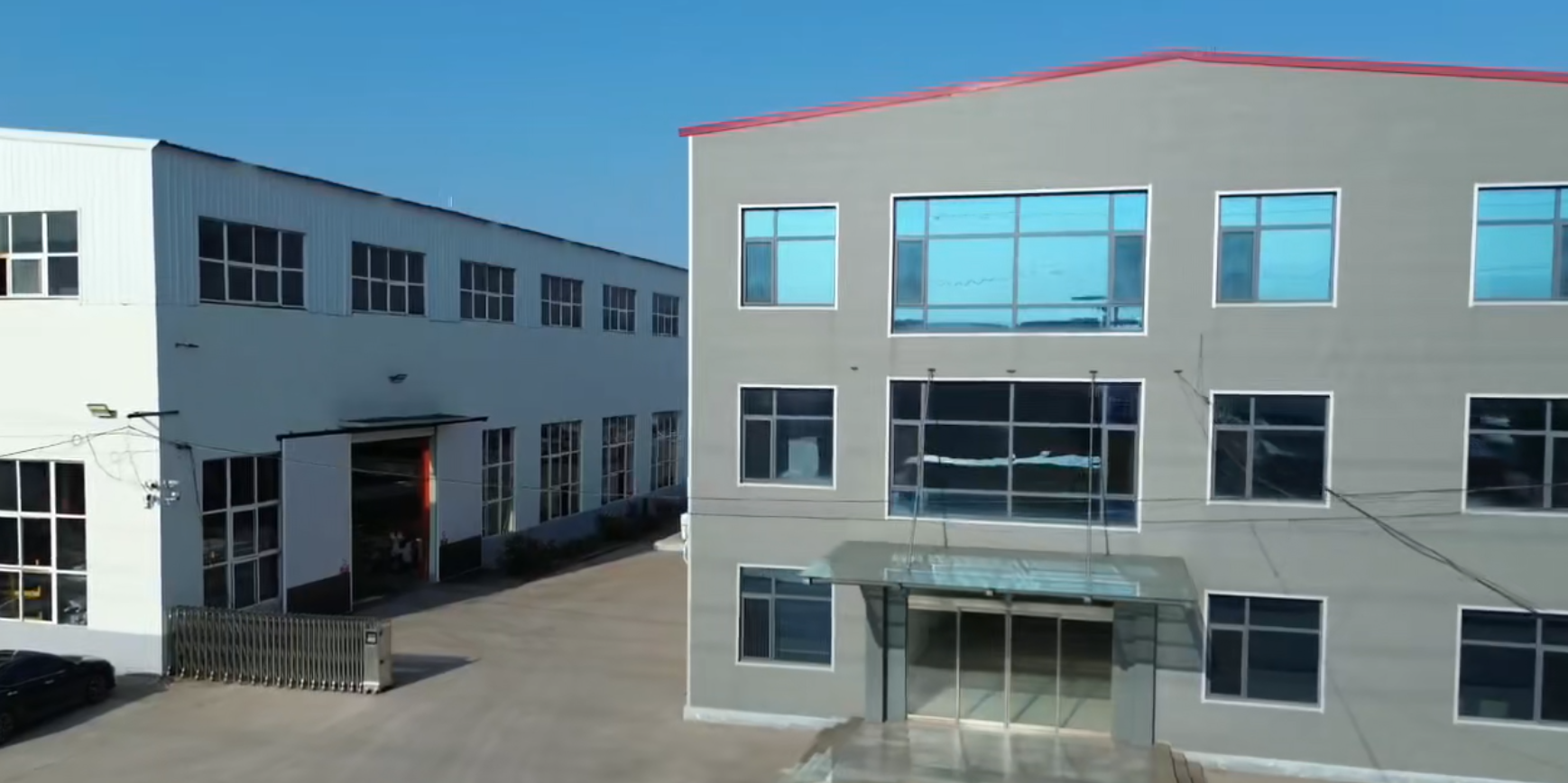

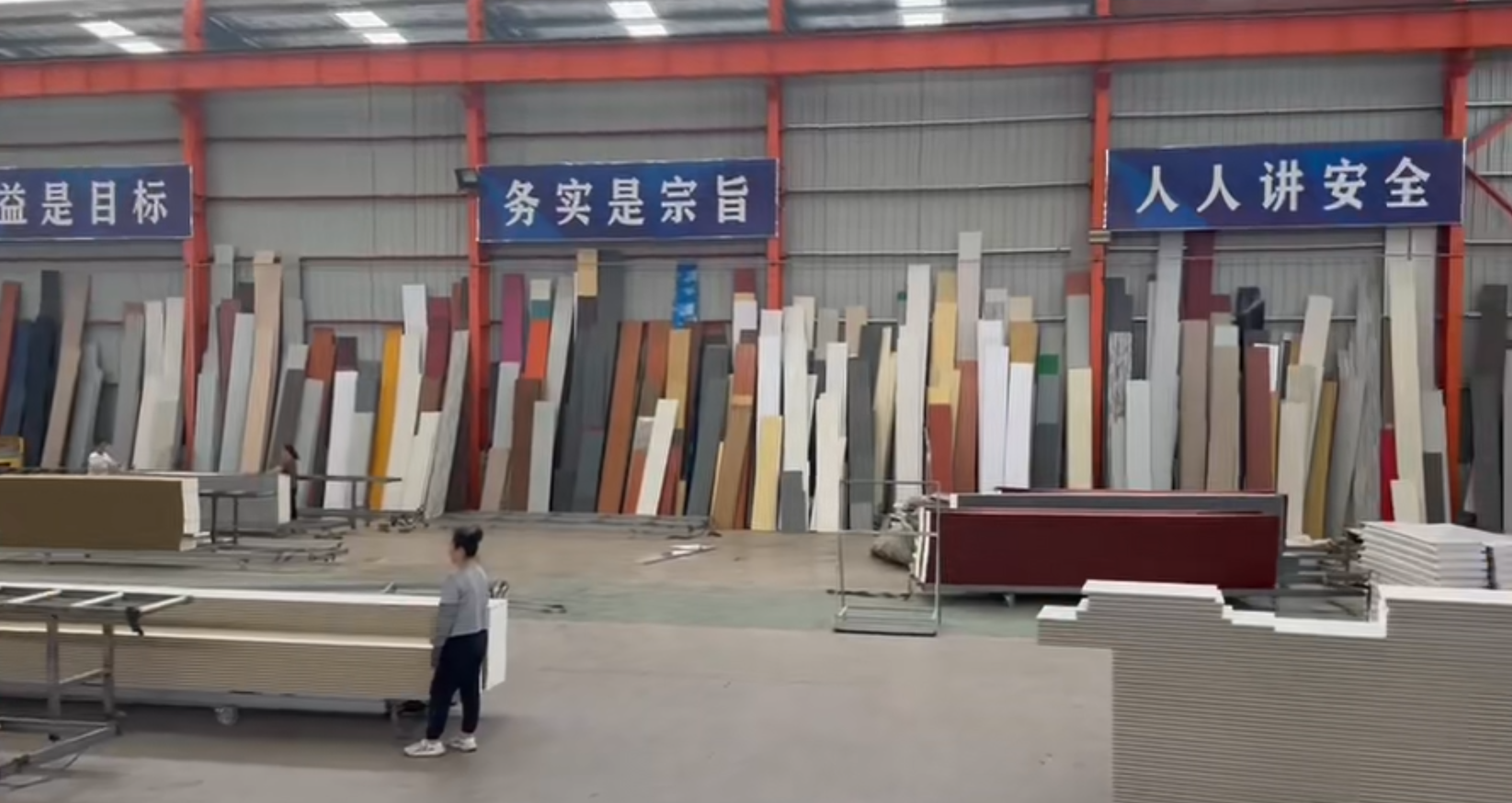

Factory display picture (all pictures are taken from real factory scenes)

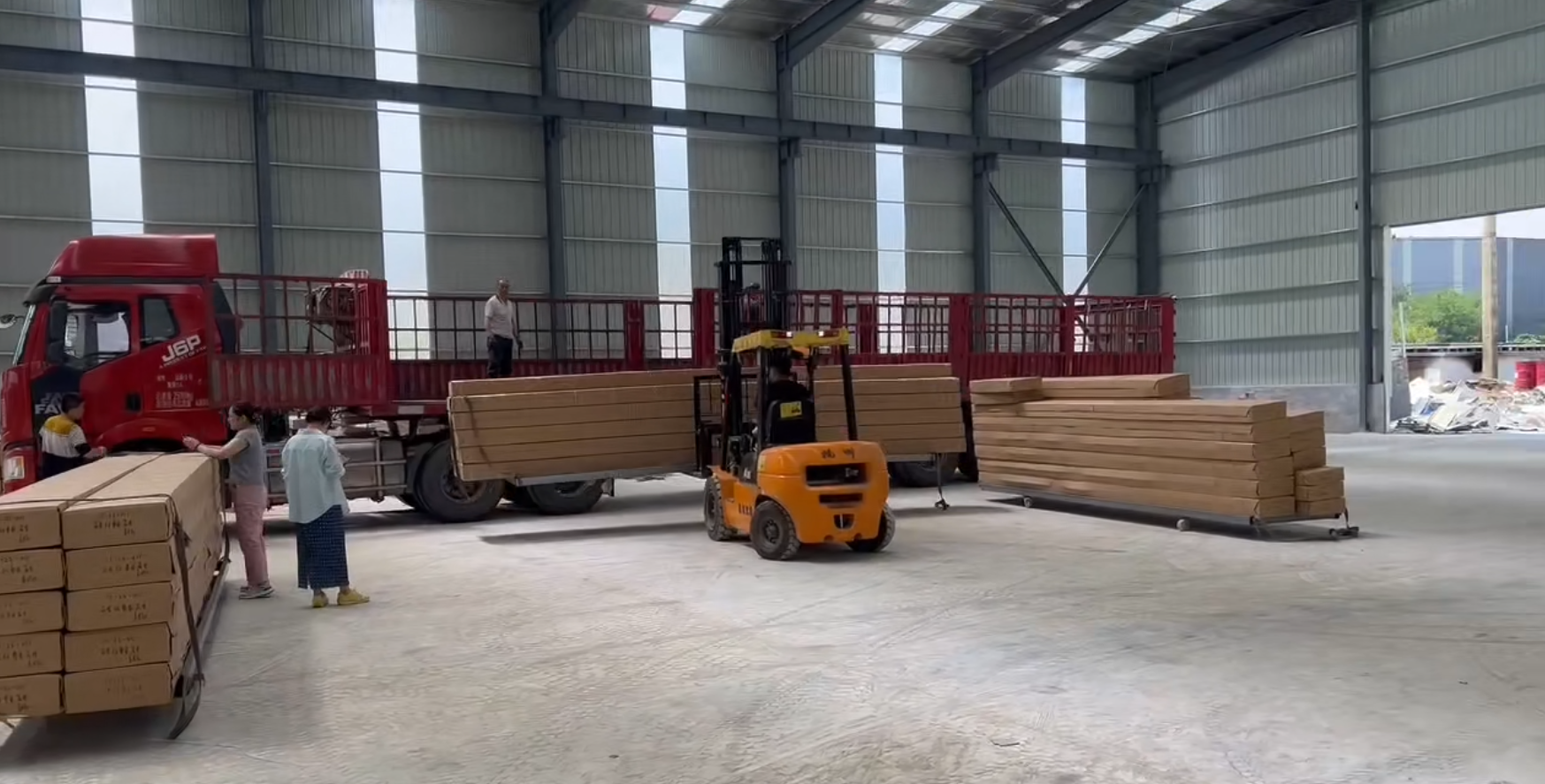

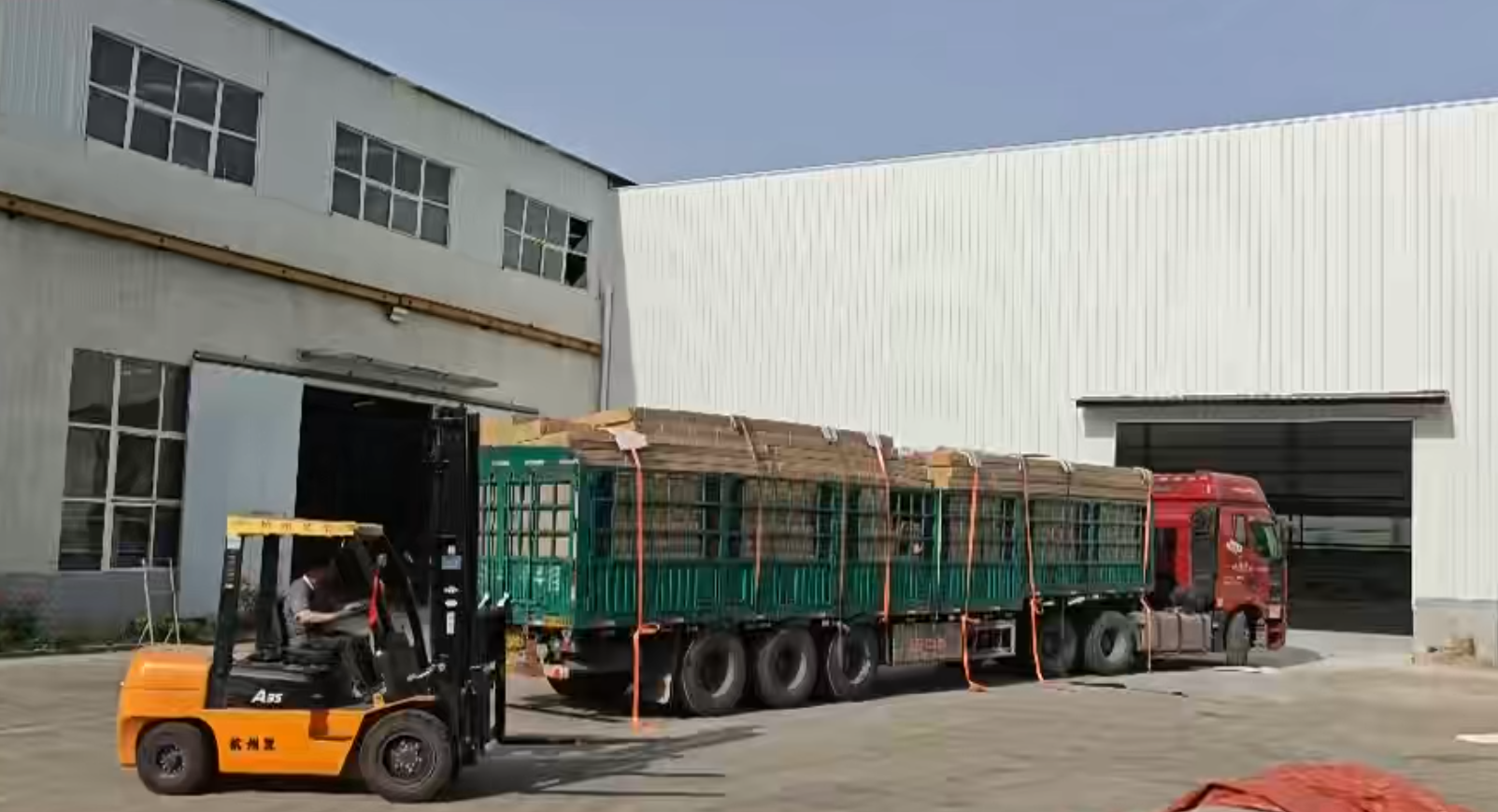

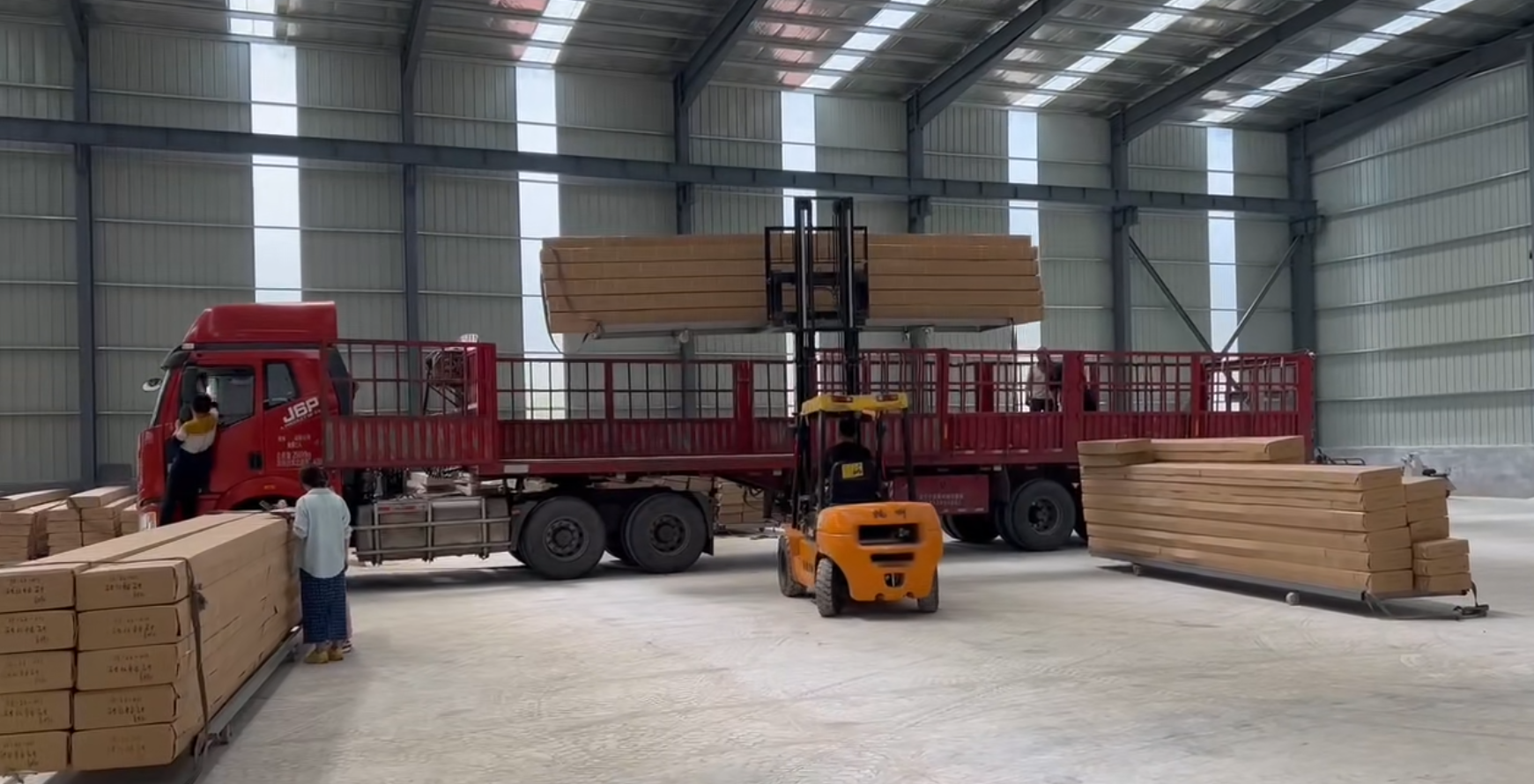

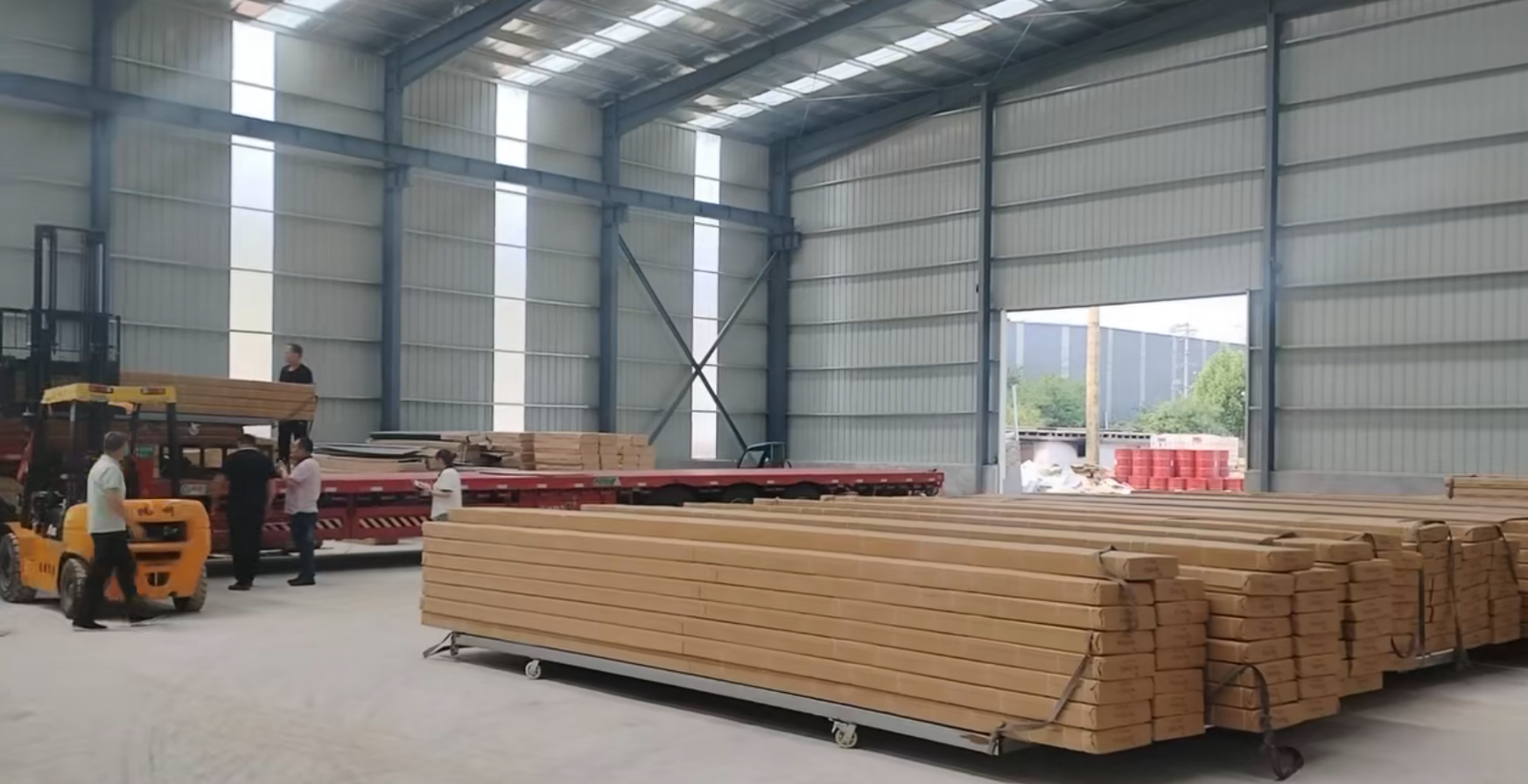

Packaging and delivery display pictures (all pictures are taken from real factory scenes)
