(all pictures and videos are taken from real factory scenes)
Classic Red Brick Textured Exterior Polyurethane Insulation Board is a composite building insulation material that combines insulation, waterproofing, and decorative features. Its base material is polyurethane rigid foam (PIR/PUR), and its surface is prefabricated in a factory process to replicate the three-dimensional texture and color of traditional red bricks, achieving a harmonious effect of insulation and antique decoration. This product is factory-standardized and directly bonded and installed on-site, significantly improving project efficiency.
Classic Red Brick Texture Exterior PU Insulated Panels specifications
| Product Name | Classic Red Brick Texture Exterior PU Insulated Panels |
| Material | Surface: Galvalume-coated steel |
| Interlayer: Rigid polyurethane foam |
| Base: Aluminum foil anti-corrosion layer |
| Dimensions | Effective width: 383mm |
| Thickness | 16mm/20mm |
| Length | Customizable, ranging from 2-6 meters for easy transport |
| Net Weight | 3.5kg/m2 |
| Installation | Snap-in fastener assembly |
The core advantages of Classic Red Brick Texture Exterior PU Insulated Panels are:
1. Excellent Thermal Insulation Performance
The thermal conductivity is as low as 0.018-0.024 W/(m·K), only half that of traditional EPS boards, significantly reducing building energy consumption.
A closed-cell ratio of over 90% effectively blocks water vapor penetration, preventing the degradation of insulation performance due to moisture absorption.
2. Fire Safety and Durability
Structural flame retardant technology provides permanent fire protection (B1 flame retardant). The surface carbonizes and self-extinguishes during combustion, producing no toxic gases.
It is highly weather-resistant, freeze-thaw-resistant, and corrosion-resistant, with a lifespan comparable to that of the building.
3. Ease of Decoration and Construction
The red brick textured finish is directly formed, eliminating the need for secondary exterior decoration and reducing overall costs by 24%.
The convex and concave slots between the panels ensure efficient installation and a seamless seal, eliminating the risk of water seepage.
4. Environmental Protection and Economical
The production process is pollution-free, waste is recyclable, and it meets green building standards. Multifunctional material (insulation + waterproofing + decoration), reducing material stacking costs.
Product structure and core performance parameters of Classic Red Brick Texture Exterior PU Insulated Panels
1. Finishing layer: Red brick-like polymer mortar, thickness: 3-5mm; impact strength ≥ 3J
2. Reinforcement layer: Fiberglass mesh, alkali-resistant breaking strength ≥ 750N/50mm
3. Insulation core: High-density rigid polyurethane foam (PIR), density: 35-45kg/m³; closed-cell ratio ≥ 90%
4. Adhesive layer: Polyurethane-based self-adhesive, peel strength ≥ 0.1MPa (to concrete)
5. Standard specifications: Length: 1200-2400mm; Width: 600-1200mm; Thickness: 30-100mm
traditional red brick texture white gap sandwich panel，modern exterior wall system red brick aesthetic，pu insulated sandwich panel with red brick finish
Classic Red Brick Texture Exterior PU Insulated Panels application scenarios and application cases
1. Residential and Public Buildings
Renovation of older residential areas: Integrating energy-saving upgrades and exterior beautification without demolition.
Commercial real estate: Projects such as hotels and conference centers that require a high level of decorative quality.
2. Specialty Buildings
Cold storage/logistics centers: Utilizing excellent insulation to reduce cooling energy consumption.
Buildings in high-humidity areas: Waterproof properties prevent mold and mildew, making them suitable for coastal cities. Refrigeration system integration solutions.
3. Prefabricated Buildings: Prefabricated exterior wall panels for integrated insulation and decorative design.

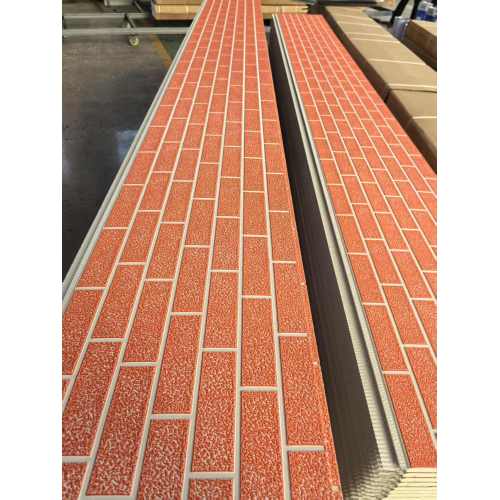

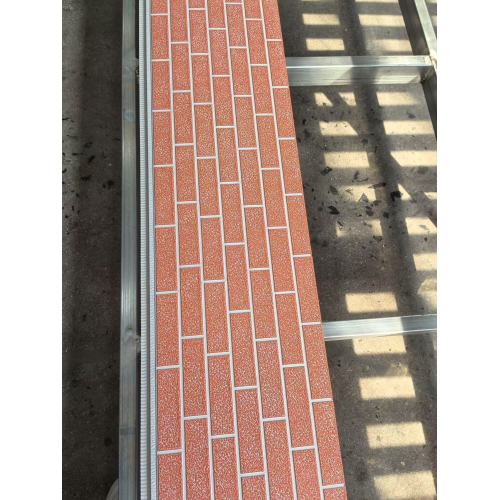

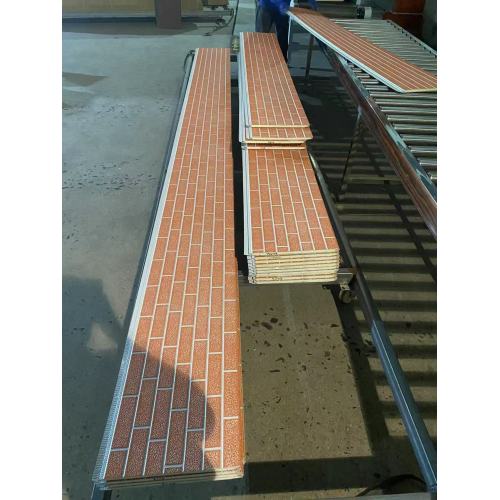

Factory display picture (all pictures are taken from real factory scenes)
Packaging and delivery display pictures (all pictures are taken from real factory scenes)
